Product description

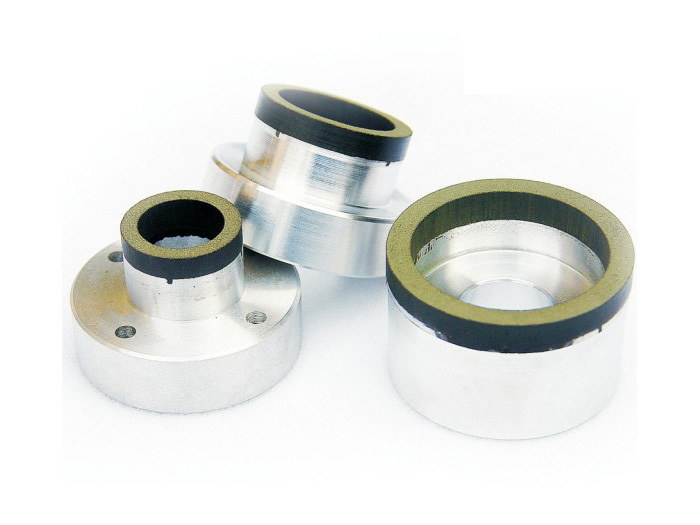

Our company produces a series of grinding and sealing balls including 6A2T and HMA oilstone. Suitable for grinding soft and hard sealing spheres of various materials, such as the valve industry. Among them, 6A2T is used for small specifications, and HMA is used for grinding large specification sealing balls.

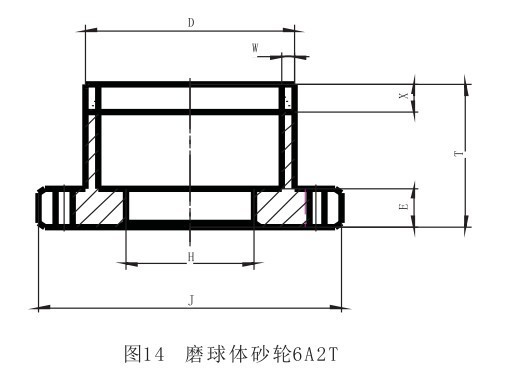

6A2T Grinding Seal Ball Special Grinding Wheel Size Specification Table (Unit)：mm
| D | T | H | W | X | E | J |
| 20 | 30 | 20 | 3 | 5 | 14 | 49 |
| 20.5 | 30 | 20 | 2.75 | 5 | 14 | 49 |
| 25 | 30 | 20 | 3、3.5、4.2 | 5 | 14 | 49 |
| 30 | 30 | 20 | 3、4 | 5 | 14 | 49 |
| 35 | 30 | 20 | 4、4.5 | 5 | 14 | 49 |
| 40 | 30 | 20 | 4、4.5 | 5 | 14 | 49 |
| 43 | 30 | 20 | 4 | 5 | 14 | 49 |
| 45 | 40 | 20 | 3.5 | 5 | 14 | 49 |
| 45 | 30 | 20 | 4 | 5 | 14 | 49 |
| 50 | 30 | 20 | 4、5 | 5 | 14 | 49 |
| 53 | 40 | 20 | 4 | 5 | 14 | 53 |
| 56 | 40 | 20 | 4 | 5 | 14 | 56 |
| 63 | 40 | 20 | 4 | 5 | 14 | 63 |
| 70 | 50 | 20 | 5 | 5 | 15 | 70 |
| 75 | 50 | 20 | 5 | 5 | 15 | 75 |
